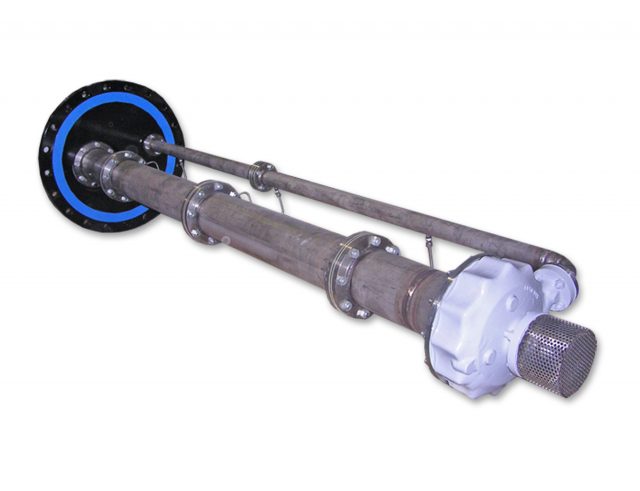

Sundyne Marelli VSMK AND VSMKD (VS4)
La VSMK y VSMKD son bombas sumergibles API 610 (VS4) Bombas verticales de sumidero de eje en línea para aplicaciones sumergibles. Las características incluyen cojinete de columna /descarga desde una fuente externa. Un diseño de eje totalmente cerrado protege la bomba para aplicaciones abrasivas y agresivas. Perfectamente adecuado para aplicaciones de refinado incluyendo agua aceitosa, hidrocarburo, topping, gascon, coker, amina y agua ácida.
Descripcion General

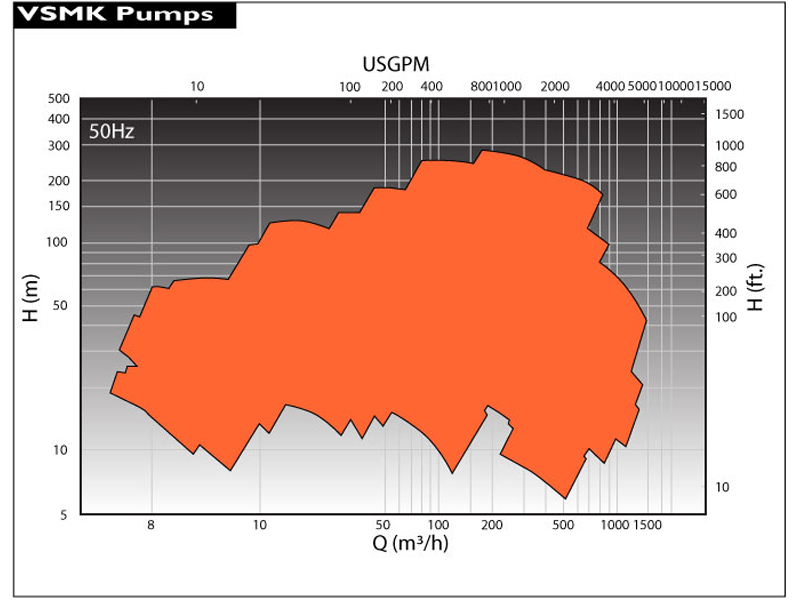

- Heads To 20 to 1,180ft 4 to 360m 60HZ: 6 to 250m
- Flows To 4 to 7,000gpm 8 to 1,600m3/hr 60HZ: 10 to 1,000m3/hr
- Max Power 939 700
- Temp Range -22 to 752°F -30 to 400°C
- Number of Stages 1.0
- Max Case Working Pressure 580 psi 40 bar
- Max Suction Pressure Flooded
- Differential Head 820 ft 250 m
- HP Dependent on Diff. Head 939 hp 700 KW
- Speed Range 0 to 3,500rpm-60Hz
- Materials of Construction Meets H1-API 610, 10th edition
- Bearing Materials Available Angular contact bearing
- Hydrotest Pressure 870 psi 60 bar
- Max Viscosity Consult factory
- Industry Standard API-610 and ISO 13709
- Mounting Configurations Submersible Vertical
- Number of Available Hydraulics… 57.0
- Seal Configurations Available API-682
- Available Flanges 300# / 600#
- Pump Case Corrosion Allowance 0 .118inch (3mm)
- Suction and Discharge Size up to 10″ / 12″
- API Plans for Sundyne Pumps All API-682 configurations
Información Técnica
- Flujo 8 a 1.600 m3/hr
- TDH 4 a 360 m
- Power 700 kW
