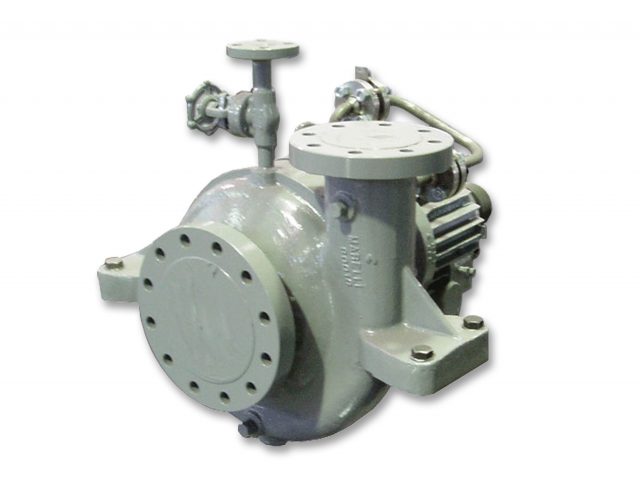

Sundyne Marelli SMK (OH2)
Las bombas SMK tipo OH2 son API-610 11ª edición e ISO 13709. De una sola etapa montada en línea centrada y alta rigidez del eje. Perfecto para aplicaciones de petróleo, gas y de refinería cuando API 610 es requerida, incluyendo LPG Merlox, HDT, Coker y separador de aguas ácidas.
Descripcion General
- Heads To 300 to 1,200ft 65 to 256m 60HZ: 92 to 366m
- Flows To 50 to 7,000gpm 8 to 1,280m3/hr 60HZ: 10 to 1,600m3/hr
- Max Power 938 700
- Temp Range -238 to 842°F -150 to 450°C
- Number of Stages 1.0
- Max Case Working Pressure 725 psi 50 bar
- Max Suction Pressure 377 to 551psi (26 to 38bar) depending on bearing housing size
- Differential Head 1,200 ft 360 m
- HP Dependent on Diff. Head 938 hp 700 KW
- Speed Range 0 to 4,000rpm-60Hz
- Materials of Construction Compliant to H1 API-610 10th edition (ISO 13709)
- Bearing Materials Available Ball bearing plus angular contact bearing (option tappered roller bearing)
- Hydrotest Pressure 1,160 psi 80 bar
- Max Viscosity Consult factory
- Industry Standard API-610 11th Edition and ISO 13709
- Mounting Configurations Horizontal/End-Top
- Number of Available Hydraulics… 57.0
- Seal Configurations Available API-682
- Available Flanges 300# , 600# FF/RF
- Pump Case Corrosion Allowance 0.118inch (3mm)
- Suction and Discharge Size up to 12 inches
- API Plans for Sundyne Pumps All API-682 configurations

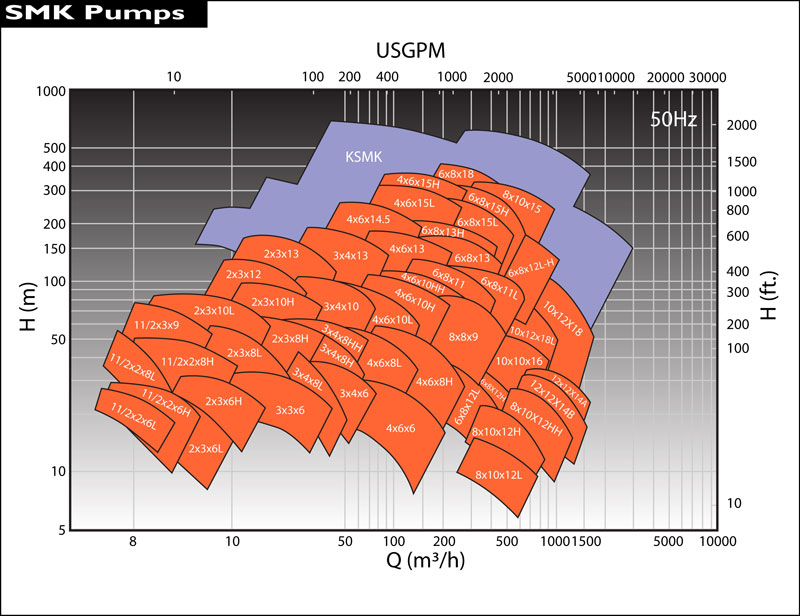

Información Técnica
- Flujo 8 a 1.280 m3/hr
- TDH 65 a 256 m
- Power 700 kW
