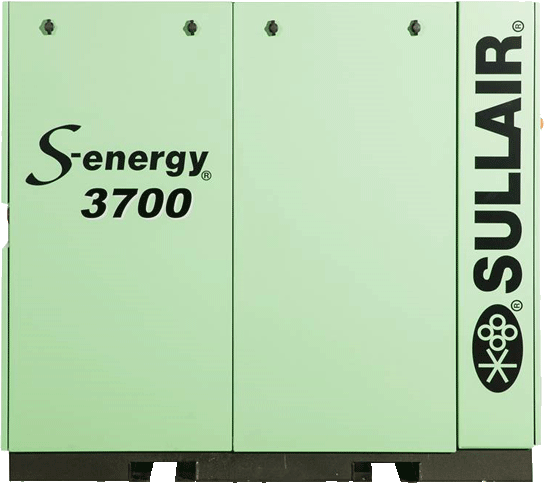

Sullair S-energy® 3000PB – 7500PSB

Las unidades S-energy de 40 a 100 hp cuentan con la misma característica de aire robusta reconocida a nivel mundial, el mismo perfil asimétrico altamente eficiente, los rodamientos y tornillos cónicos, respaldados por la garantía de Diamante de 10 años.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química, Alimentos
Descripcion General

Available models:

  • 3000PB—40 hp (30 kW), 166 to 200 acfm (4.7 to 5.66 m³/min), 100 to 150 psig (6.9 to 10.3 bar)
  • 3000PVB—40 hp (30 kW) Variable Speed Drive (VSD), 163 to 200 acfm (4.62 to 5.66 m³/min), 100 to 150 psig (6.9 to 10.3 bar)
  • 3700B—50 hp (37 kW), 180 to 251 acfm (5.10 to 7.11 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 3700VB—50 hp (37 kW) Variable Speed Drive (VSD), 183 to 249 acfm (5.18 to 7.05 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 4500B—60 hp (45 kW), 221 to 269 acfm (6.26 to 7.62 m³/min), 125 to 175 psig (8.6 to 12.1 bar)
  • 4500VB—60 hp (45 kW) Variable Speed Drive (VSD), 222 to 260 acfm (6.29 to 7.36 m³/min), 125 to 175 psig (8.6 to 12.1 bar)
  • 4500P—60 hp (45 kW), 233 to 303 acfm (6.59 to 8.58 m³/min), 100 to 150 psig (6.9 to 10.3 bar)
  • 4500PVB—60 hp (45 kW) Variable Speed Drive (VSD), 269 to 305 acfm (7.62 to 8.64 m³/min), 100 to 125 psig (6.9 to 8.6 bar)
  • 4500PSB—60 hp (45 kW) with Spiral Valve, 276 to 310 acfm (7.82 to 8.78 m³/min), 100 to 125 psig (6.9 to 8.6 bar)
  • 5500B—75 hp (55 kW), 277 to 377 acfm (7.84 to 10.68 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 5500VB—75 hp (55 kW) Variable Speed Drive (VSD), 278 to 377 acfm (7.87 to 10.68 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 5500PSB—75 hp (55 kW) with Spiral Valve, 354 to 387 acfm (10.02 to 10.96 m³/min), 100 to 125 psig (6.9 to 8.6 bar)
  • 7500B—100 hp (75 kW), 370 to 490 acfm (10.48 to 13.87 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 7500VB—100 hp (75 kW) Variable Speed Drive (VSD), 381 to 493 acfm (10.79 to 13.96 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 7500P—100 hp (75 kW), 371 to 500 acfm (10.50 to 14.16 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 7500PVB—100 hp (75 kW) Variable Speed Drive (VSD), 394 to 500 acfm (11.16 to 14.16 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
  • 7500PSB—100 hp (75 kW) with Spiral Valve, 371 to 500 acfm (10.50 to 14.16 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
Información Técnica
  • Flujo 163 – 500 cfm (4,62 – 14,16 m3/min)
  • Presion de Trabajo 100 – 175 psi (6,9 – 12,1 bar)
  • Power 40 – 100 Hp
