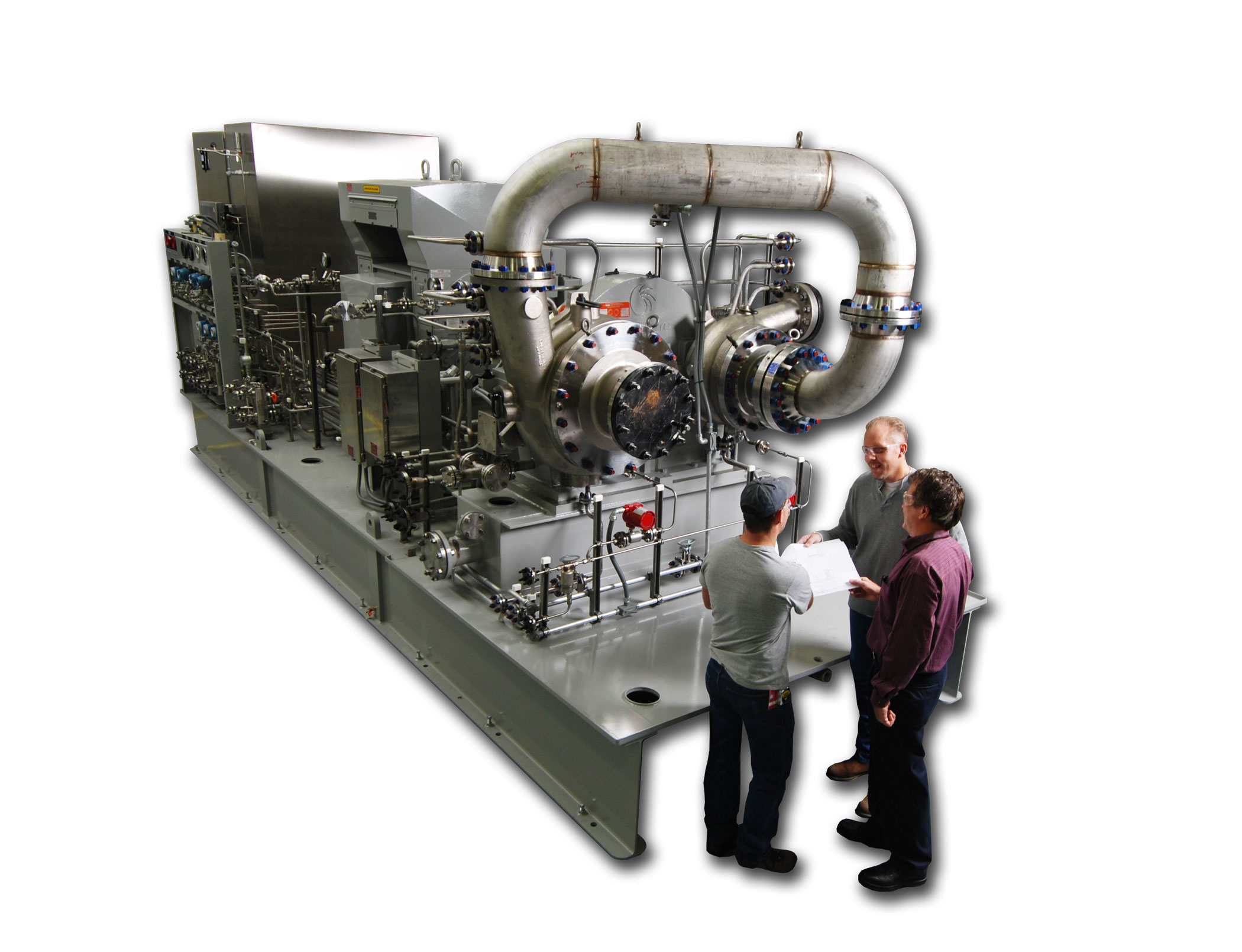

PINNACLE LF-2000

El Pinnacle LF-2000 es un compresor centrífugo de una a cuatro etapas con engranajes integrales API-617.

Soluciones: Gas y Petróleo, Energía, Química
Descripcion General

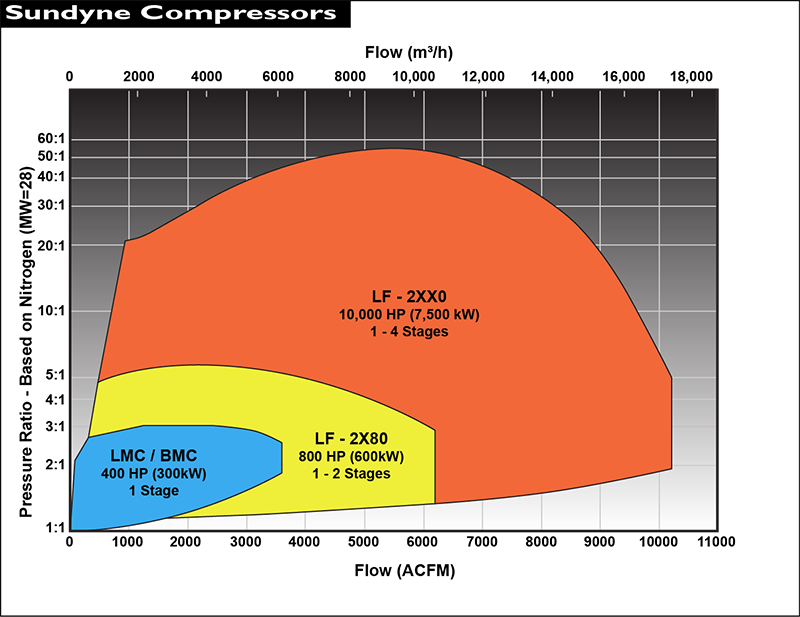

  • Maximum Flow                10,000 acfm       17,000 am³/hr
  • Maximum Speed             42,000 rpm-60Hz             42,000 rpm-50Hz
  • Maximum Working Pressure      5,000 psi             350 bar
  • Temperature Range       -256 to 500°F     -160 to 260°C
  • Maximum Motor Size    10,000 hp           7,500 kW
  • Hydro Test Pressure       1.5 Times Maximum Working Pressure
  • Min Casing Thickness     1 in        25.4 mm
  • Corrosion Allowance      0.125 in               3.18 mm
  • Impeller Clearance          0.03 to 0.05in    .76 to 1.27mm
  • Mounting            Horizontal
  • Flanges                150,300,600# ANSI RF standard, other ratings available
  • Suction Flange 3 – 14 inches
  • Discharge Flange              2 – 12 inches
  • Gearbox Oil Temp Range (normal…        120 to 180°F      49 to 82°C
  • Minimum Gearbox Starting Temp            32°f (0°C) with light turbine oil – lower with approved synthetic oil
  • Gearbox Lubricant           ISO VG-32 General Purpose Oil
  • Gearbox Lube System    Pressurized
  • Gears    Hardened and precision ground, helical
  • Input and Idler Bearings               Journal
  • Output Bearings               Deflection Pad
  • Coupling              Spacer Type
  • Materials of Construction            Castings (carbon steel, stainless steel); Impeller (17-4PHSS, Titanium)
  • Process Seals     Dry Gas Seal Arrangements; Cartridge – Single, Double, Tandem, Tandem with Intermediate Labyrinth
Información Técnica
  • Flujo hasta 10.000 ACFM (17.000 AM³/hr)
  • Max Presion de Trabajo 5.000 psia (350 bar)
  • Power 7.500 kW
