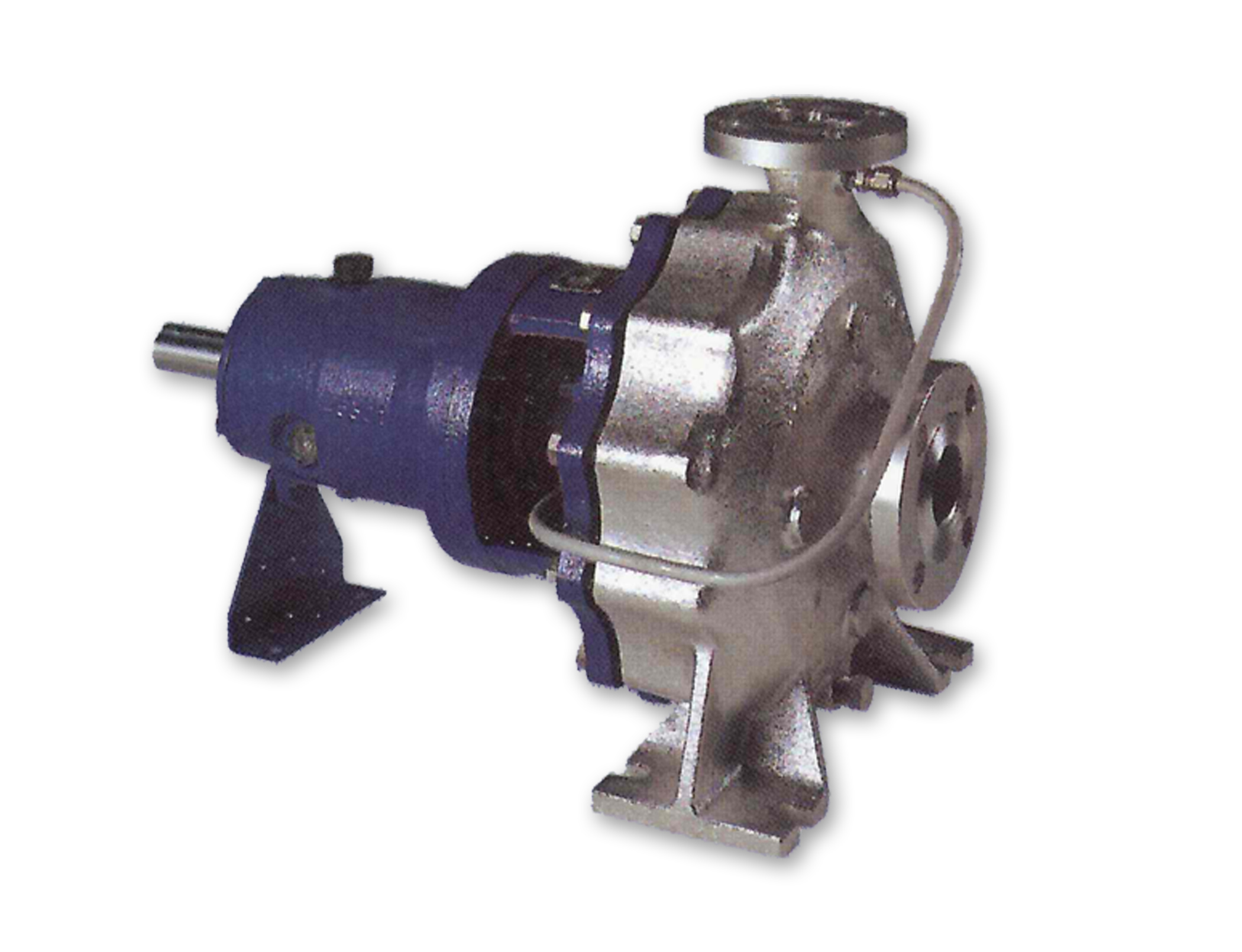

Sundyne Marelli ND

El modelo ND, es una bomba de una sola etapa, de auto-ventilación para servicios generales químicos, industriales y petroquímicos.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química, Alimentos
Descripcion General

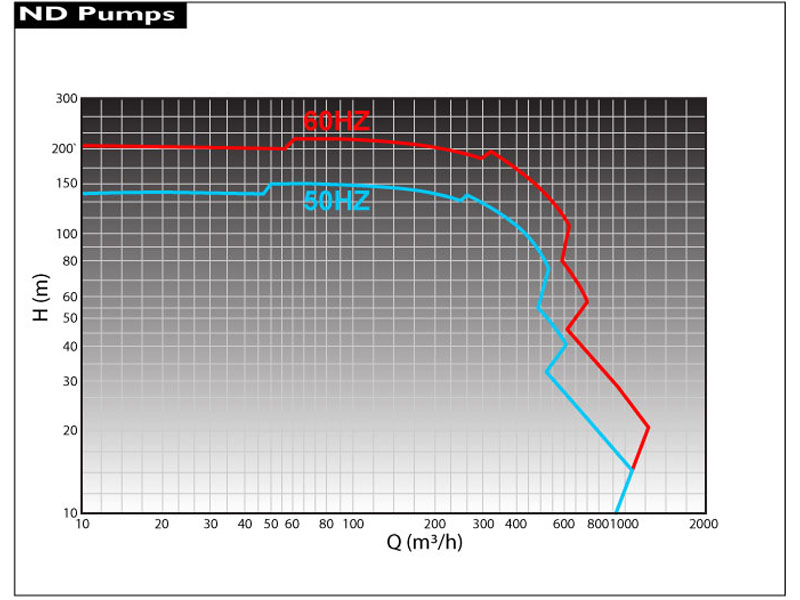

  • Heads To             30 to 754ft          6 to 161m           60HZ: 9 to 230m
  • Flows To              10 to 5,283gpm 2 to 960m3/hr   60HZ: 3 to 1,200m3/hr
  • Max Power         215         160
  • Temp Range      -58 to 482°F        -50 to 250°C
  • Number of Stages            1.0
  • Max Case Working Pressure       232 psi 16 bar
  • Max Suction Pressure     145psi (10bar)
  • Differential Head             492 ft    150 m
  • HP Dependent on Diff. Head       215 hp  160 KW
  • Speed Range     0 to 3,500rpm-60Hz
  • Materials of Construction            Casing, impeller, wear ring GG25; Shaft AISI 420 (other materials by request)
  • Hydrotest Pressure         348 psi 24 bar
  • Max Viscosity    Consult factory
  • Industry Standard             DIN 24256 / ISO 2858
  • Mounting Configurations              Horizontal (End-Top)
  • Dimensional Standards  DIN 24256 / ISO 2858
  • Number of Available Hydraulics…            34.0
  • Seal Configurations Available     Packing with optional mechanical seals
  • Available Inducer             Yes
  • Available Flanges              PN16/FF
  • Suction and Discharge Size           up to DN 200 / ND 150
Información Técnica
  • Flujo 2 a 960 m3/hr
  • TDH 6 a 161 m
  • Power 160 kW
