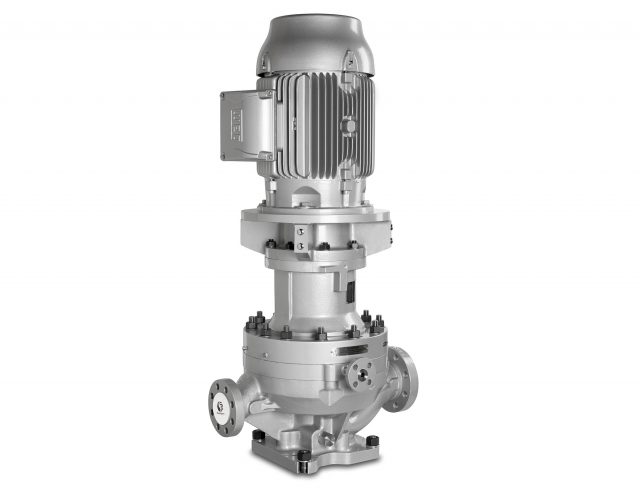

Sundyne LMV 801S API-685 (OH3-5)
Construido para cumplir con las exigentes normas API 685, la LMV-801S es una bomba de impulsión magnética sin sellos mecánicos, en una sola etapa vertical. La LMV-801S es intercambiable dimensionalmente con la tradicional LMV-801 con sellada mecánicamente (OH3 /5)
Descripcion General
- Heads To 0 to 720ft 0 to 220m
- Flows To 20 to 380gpm 4.5 to 86m3/hr
- Max Power 0 to 100hp 0 to 75kW
- Temp Range -40 to 400°F -40 to 205°C
- Number of Stages One
- Max Case Working Pressure 580 psi 40 bar
- Speed Range 1,750 to 3,500rpm-60Hz 1450 to 2,900rpm-50Hz
- Materials of Construction Carbon Steel, 316 SS, Duplex
- Bearing Materials Available Silicone Carbide
- Hydrotest Pressure 870 psi 60 bar
- Max Viscosity 200 cSt
- Industry Standard API 685 vertical inline single stage overhung sealless magnetic drive pump
- Solids Range Clean liquids only
- Motor Details NEMA C Face Mounted
- Mounting Configurations Close Coupled
- Seal Configurations Available Sealless
- Available Inducer Yes
- Available Flanges 600# RF
- Pump Case Corrosion Allowance 1/8 inch (3.2mm)
- Suction and Discharge Size 3″ x 2″
Información Técnica
- Flujo 4.5 a 86 m3/hr
- TDH 0 a 220 m
- Power 0 a 75 kW
