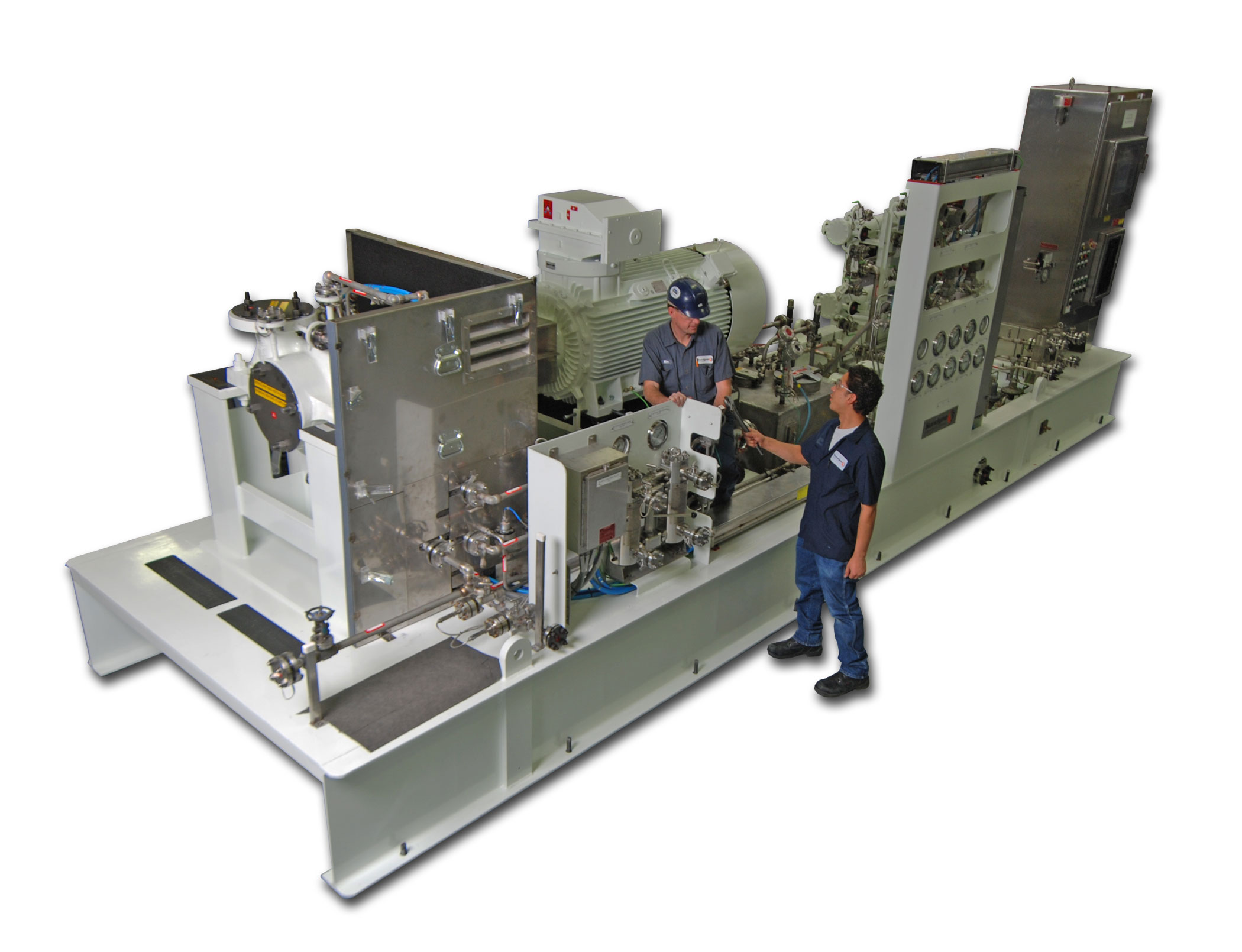

LMC & BMC-347

El LMC / BMC-347 es un compresor centrífugo de una sola etapa con engranajes integrales que ofrece un rendimiento multietapa. Construido para cumplir con las exigentes normas API-617 / ISO 10439

Soluciones: Gas y Petróleo, Energía, Química
Descripcion General
  • Maximum Flow                3,550 acfm         6,030 am³/hr
  • Maximum Speed             33,600 rpm-60Hz             34,200 rpm-50Hz
  • Maximum Working Pressure      1,200 psi             85 bar
  • Temperature Range       -200 to 500°F     -130 to 260°C
  • Maximum Motor Size    450 hp  335 kW
  • Hydro Test Pressure       1.5 Times Maximum Working Pressure
  • Min Casing Thickness     0.75 in  19.05 mm
  • Corrosion Allowance      0.125 in               3.18 mm
  • Impeller Clearance          0.03 to 0.05in    .76 to 1.27mm
  • Shaft Diameter at Bearings          1.5in (38.1mm)
  • Mechanical Seal Sizes-Outboard…          1.5 in     38.1 mm
  • Mechanical Seal Sizes-Inboard 1.5 in     38.1 mm
  • Mounting            Horizontal
  • Flanges                600# ANSI RF standard, other ratings available
  • Suction Flange 8 inch
  • Discharge Flange              6 inch
  • Gearbox Oil Temp Range (normal…        120 to 140°F      49 to 60°C
  • Minimum Gearbox Starting Temp            32 ° f (0 °C) with light turbine oil, lower with approved synthetic oil
  • Gearbox Lubricant           ISO VG-46 General Purpose Oil
  • Gearbox Sump Capacity                7 quarts (6.6 Liters)
  • Gearbox Lube System    Pressurized
  • Gears    Hardened and precision ground, helical and/or spur
  • Input and Idler Bearings               Deep groove, angular contact or solid journal as required
  • Output Bearings               Solid Journal or Tilt Pad thrust and radial as required
  • Coupling              Standard flexible or spacer type
  • Materials of Construction            Carbon Steel / Stainless Steel castings, 17-4PH / Titanium impellers
Información Técnica
  • Flujo hasta 3.550 ACFM (6.030 AM³/hr)
  • Max Presion de Trabajo 1.200 psia (85 bar)
  • Power 335 kW
