LMC & BMC-343

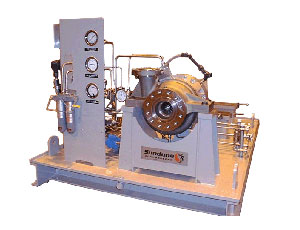

El LMC / BMC-343 es un compresor centrífugo de una sola etapa con engranajes integrales que ofrece un rendimiento multietapa. Construido para cumplir con las exigentes normas API-617 / ISO 10439
Descripcion General
- Maximum Flow 2,100 acfm 3,570 am³/hr
- Maximum Speed 34,200 rpm-60Hz 33,600 rpm-50Hz
- Maximum Working Pressure 1,000 psi 70 bar
- Temperature Range -200 to 500°F -130 to 260°C
- Maximum Motor Size 450 hp 335 kW
- Hydro Test Pressure 1.5 Times Maximum Working Pressure
- Min Casing Thickness 0.75 in 19.05 mm
- Corrosion Allowance 0.125 in 3.18 mm
- Impeller Clearance 0.03 to 0.05in .76 to 1.27mm
- Shaft Diameter at Bearings 1.5in (38.1mm)
- Mechanical Seal Sizes-Outboard… 1.25 in 31.8 mm
- Mechanical Seal Sizes-Inboard 1.5 in 38.1 mm
- Mounting Vertical or Horizontal
- Flanges 600# ANSI RF standard, other ratings available
- Suction Flange 6 inches
- Discharge Flange 4 inches
- Gearbox Oil Temp Range (normal… 120 to 180°F 49 to 82°C
- Minimum Gearbox Starting Temp 32°f (0°C) with light turbine oil lower with approved synthetic oil
- Gearbox Lubricant ISO VG-46 General Purpose Oil
- Gearbox Sump Capacity 7 Quarts (6.6 Liters)
- Gearbox Lube System Pressurized
- Gears Hardened and precision ground, helical and/or spur
- Input and Idler Bearings Deep groove, angular contact or solid journal as required
- Output Bearings Solid Journal or tilt pad thrust and radial as required
- Coupling Standard flexible or spacer type
- Materials of Construction Castings (carbon steel, stainless steel); Impeller (17-4PHSS, Titanium)

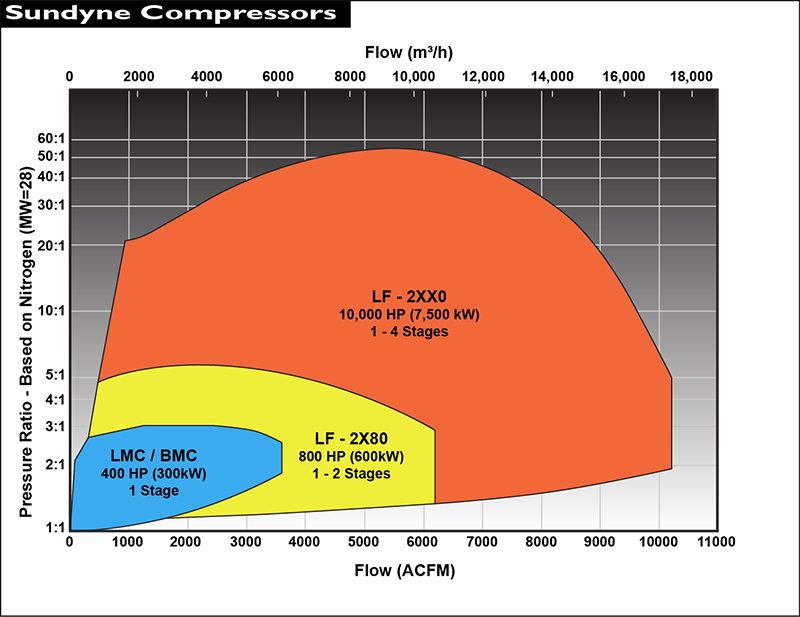

Información Técnica
- Flujo hasta 2.100 ACFM (3.570 AM³/hr)
- Max Presion de Trabajo 1.000 psia (70 bar)
- Power 335 kW
