LMC 331P & 331F
El LMC-331 es un compresor centrífugo de una sola etapa con engranajes integrales que ofrece un rendimiento multietapa.

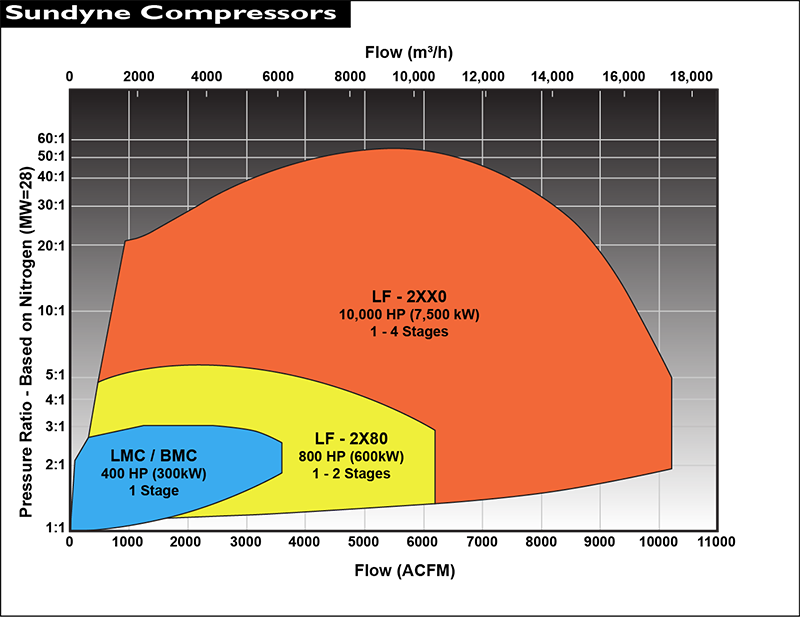

Descripcion General
- Maximum Flow 850 acfm 1,450 am³/hr
- Maximum Speed 34,200 rpm-60Hz 33,600 rpm-50Hz
- Maximum Working Pressure 1,440 psi 100 bar
- Temperature Range -200 to 500°F -130 to 260°C
- Maximum Motor Size 400 hp 298 kW
- Hydro Test Pressure 1.5 Times Maximum Working Pressure
- Min Casing Thickness 0.625 in 15.88 mm
- Corrosion Allowance 0.125 in 3.18 mm
- Impeller Clearance 0.03 to 0.05in .76 to 1.27mm
- Shaft Diameter at Bearings 1.5in (38.1mm)
- Mechanical Seal Sizes-Outboard… 1.25 in 31.8 mm
- Mechanical Seal Sizes-Inboard 1.5 in 38.1 mm
- Mounting Vertical or Horizontal
- Flanges 600# ANSI RF standard, other ratings available
- Suction Flange 3 inches
- Discharge Flange 2 inches
- Gearbox Oil Temp Range (normal… 120 to 180°F 49 to 82°C
- Minimum Gearbox Starting Temp 32°f (0°C) with light turbine oil – lower with approved synthetic oil
- Gearbox Lubricant ISO VG-46 General Purpose Oil
- Gearbox Sump Capacity 7 Quarts (6.6 Liters)
- Gearbox Lube System Pressurized
- Gears Hardened and precision ground, helical and/or spur
- Input and Idler Bearings Deep groove, angular contact or solid journal as required
- Output Bearings Solid Journal or tilt pad thrust and radial as required
- Coupling Spline, standard flexible or spacer type
- Materials of Construction Castings (carbon steel, stainless steel); Impeller (17-4PHSS, Titanium)
Información Técnica
- Flujo hasta 850 ACFM (1.450 AM³/hr)
- Max Presion de Trabajo 1.440 psia (100 bar)
- Power 298 kW
