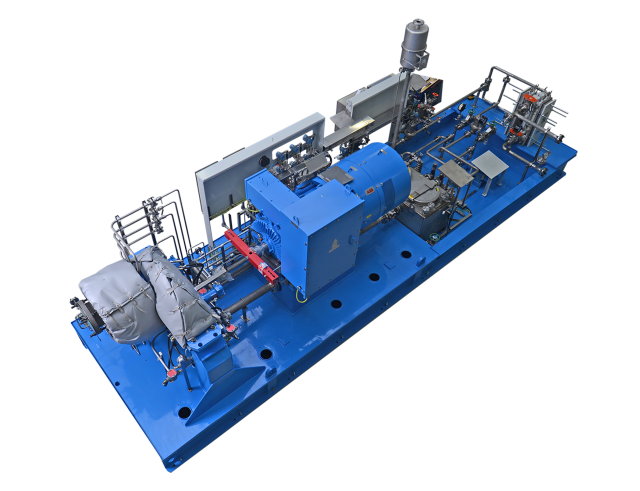

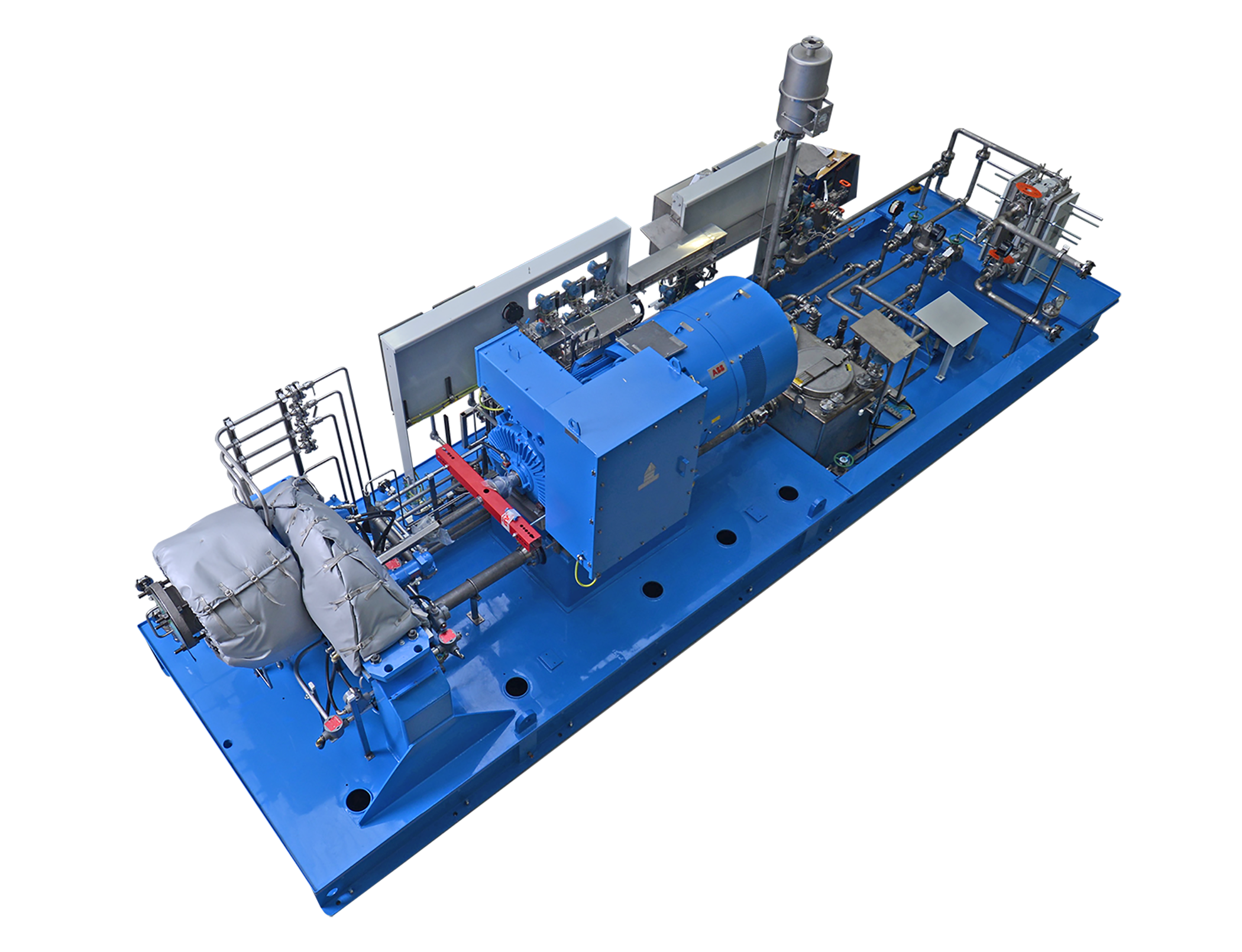

LF-2X80

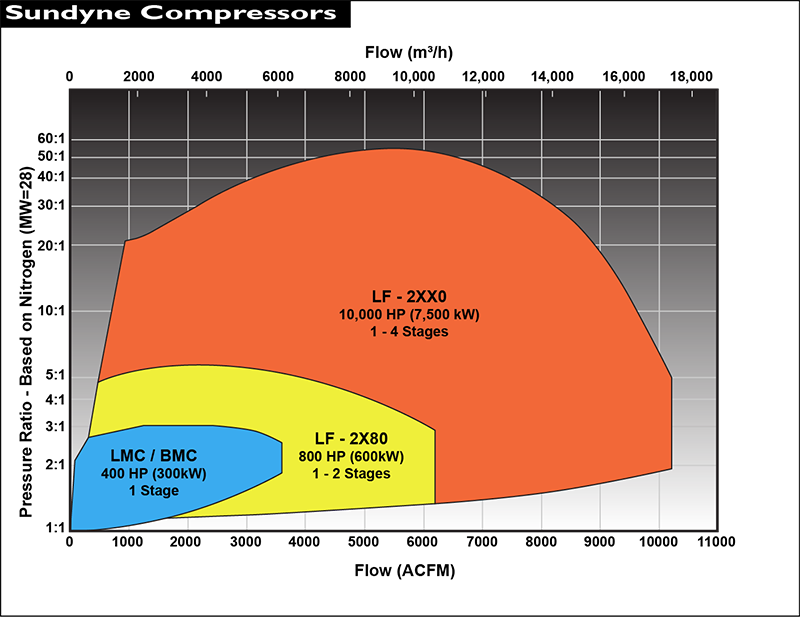

El compresor de proceso centrífugo de varias etapas Sundyne LF-2X80 utiliza la tecnología y la experiencia LF-2000, para extender la línea de productos LMC / BMC, lo que permite una mayor capacidad de flujo, cabeza y caballos de fuerza. Construido para cumplir con las exigentes normas API-617 /614 ISO 10439

Soluciones: Gas y Petróleo, Energía, Química
Descripcion General
  • Maximum Flow                6,000 acfm         10,200 am³/hr
  • Maximum Speed             32,000 rpm-60Hz
  • Maximum Working Pressure      1,440 psi             100 bara
  • Temperature Range       -200 to 500°F     -130 to 260°C
  • Maximum Motor Size    900 hp  670 kW
  • Hydro Test Pressure       1.5 times max working pressure
  • Min Casing Thickness     1 in        25.4 mm
  • Corrosion Allowance      0.125 in               3.18 mm
  • Impeller Clearance          0.03 to 0.05in    .76 to 1.27mm
  • Shaft Diameter at Bearings          1.5 – 2.0 in. (38.1 – 50.8mm)
  • Mechanical Seal Sizes-Outboard…          2.3 in     58.4 mm
  • Mechanical Seal Sizes-Inboard 2.3 in     58.4 mm
  • Mounting            Horizontal
  • Flanges                300, 600# ANSI RF standard
  • Suction Flange 4 – 10 in
  • Discharge Flange              3 – 10 in
  • Minimum Gearbox Starting Temp            32 degrees F (0 degrees C) with approved synthetic oil
  • Gearbox Lubricant           ISO VG-32 General Purpose Oil
  • Gearbox Sump Capacity                100 Gal
  • Gearbox Lube System    Pressurized
  • Gears    Hardened and Precision Ground Helical
  • Output Bearings               Deflection Pad
  • Coupling              Spacer Type Disc Coupling
  • Materials of Construction            Gearbox Housing: Carbon Steel
  • High Speed Shaft with Integral Pinion: AMS 6260, 6265
  • Input Shaft: AISI 4340
  • Gears: Bull Gear – Nitrided Steel
  • Gears: Pinion – Carburized Steel
  • Low Speed Bearings: Radial Journal / Tapered Land Thrust
  • High Speed Bearings: Deflection Pad Journal
  • High Speed Bearings: Thrust – Tapered Land, Tilt-Pad, Hydrostatic
  • Gear Quality      AGMA 2015-A4 (AGMA Class 13)
  • Shaft Drive Lube Pump  3 Screw Positive Displacement
  • Process Seals     Cartridge-Single, Double, Tandem, Tandem with intermediate labyrinth
  • Input Seal           Bearing isolator type
  • Input Bearings  Journal
Información Técnica
  • Flujo hasta 6.000 ACFM (10,200 AM³/hr)
  • Max Presion de Trabajo 1.440 psia (100 bar)
  • Power 670 kW
