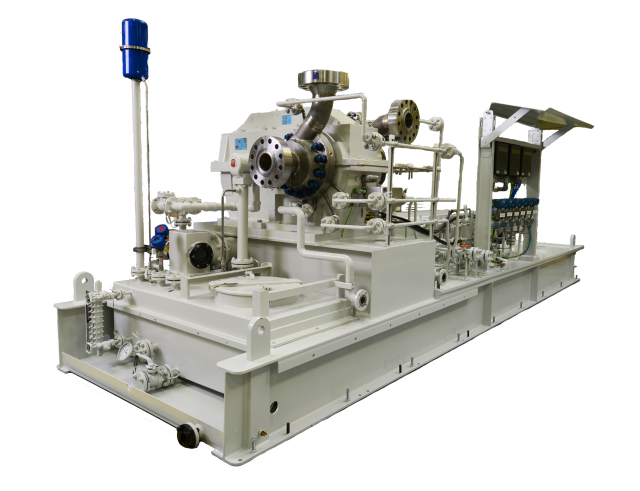

Sundyne HMP 7000
La HMP-7000 es una bomba centrífuga integrada que puede operar de una a tres etapas. La HMP-7000 es para servicios pesados en las industrias de fertilizantes, PTA, urea, HPI, CPI y especiales.
Descripcion General
- Heads To 1,000 to 15,000ft 320 to 4,570m
- Flows To 0 to 1,585gpm 0 to 360m3
- Max Power 0 to 2,400hp 0 to 1,790kW per pinion gear
- Temp Range -200 to 550 F -129 to 288 C
- Number of Stages 1 2 3
- Max Case Working Pressure 6,000psi 422 kg cm2
- Max Suction Pressure 1,000psi (70 kg/cm2)
- Standard Delivery Consult Factory
- Speed Range 3,000rpm to 29,000rpm-60Hz
- Materials of Construction Consult Factory
- Bearing Materials Available Steel, Bronze, Babbitt
- Hydrotest Pressure 9,000psi 633 kg/cm2
- Max Viscosity 100 cp
- Industry Standard API-610
- Solids Range 0.015″ (0.381mm) 400 microns
- Motor Details Custom
- Mounting Configurations Horizontal
- Dimensional Standards Custom
- Number of Available Hydraulics… Custom
- Seal Configurations Available Single, Double, Tandem Cartridge Type Mechanical Seals
- Available Inducer Yes
- Available Flanges 600#, 900#, 1500#, 2500# RF or RTJ
- Pump Case Corrosion Allowance 0.125 inches (3.175 mm)
- Suction and Discharge Size 6×6

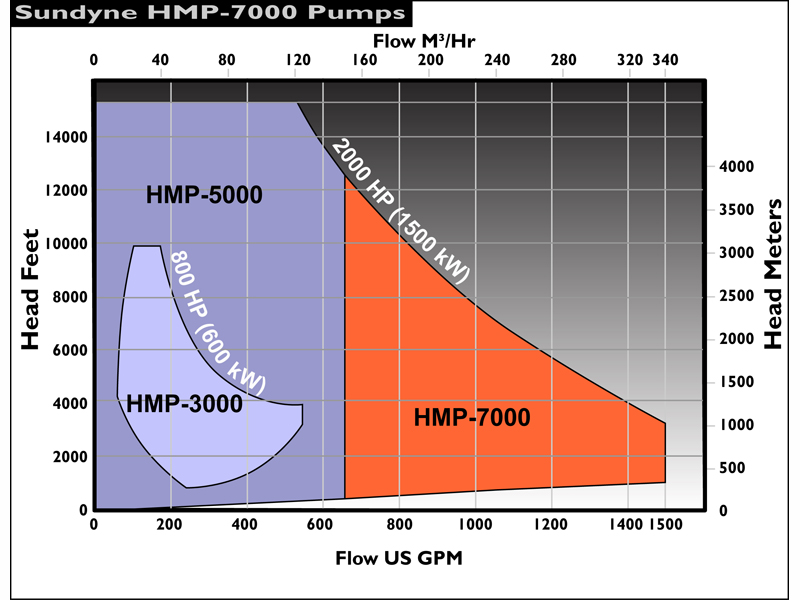

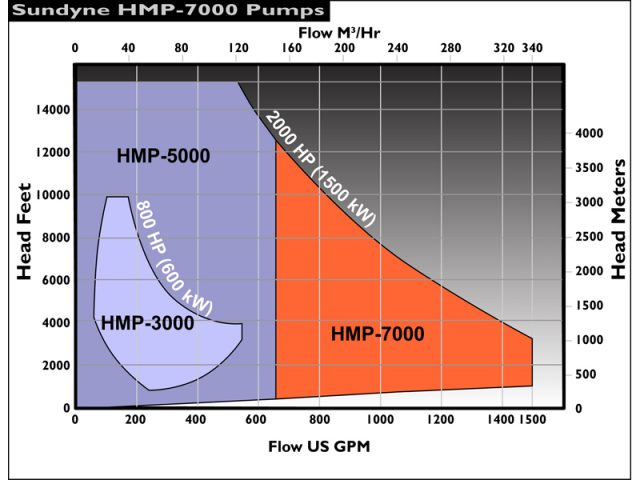

Información Técnica
- Flujo 0 a 360 m3/hr
- TDH 320 a 4570 m
- Power kW
