Sundyne HMP 5000

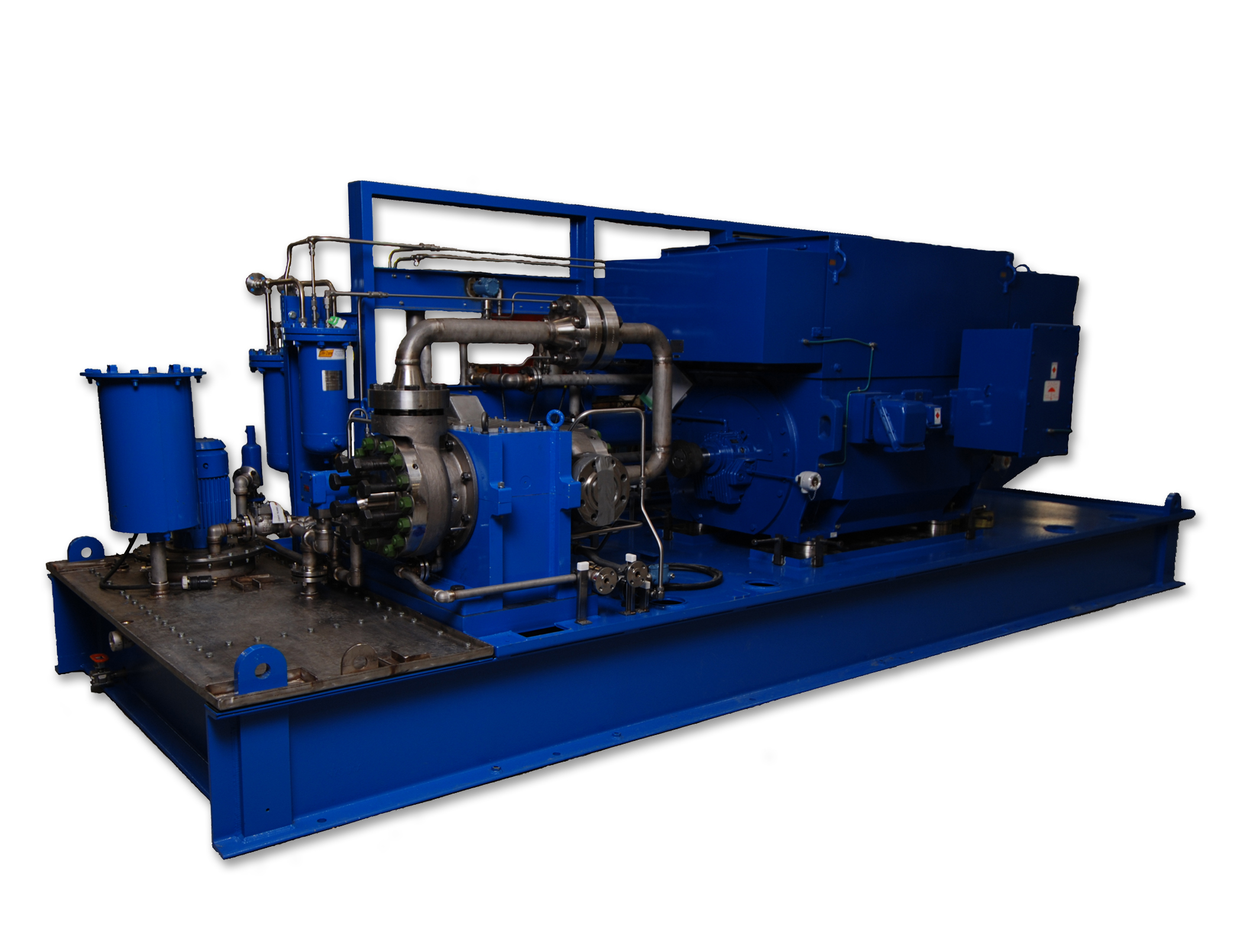

La Sundyne HMP-5000 es una bomba centrífuga de una a cuatro etapas con engranajes integrales en una sola caja de engranajes. La HMP-5000 es para servicios pesados en las industrias de fertilizantes, PTA, urea, HPI, CPI y especiales.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química
Descripcion General
  • Heads To             10 to 14,500ft    2 to 3,094m        60HZ: 3 to 4,420m
  • Flows To              60 to 1,000gpm 1 to 182m3/hr   60HZ: 2 to 227m3/hr
  • Max Power         2,500     1865
  • Temp Range      -200 to 500°F     -130 to 260°C
  • Number of Stages            2.0
  • Max Case Working Pressure       6,000 psi             422 kg/cm2
  • Max Suction Pressure    1,000psi (70kg/cm²)
  • Differential Head             14,500 ft             4,500 m
  • HP Dependent on Diff. Head       2,500 hp              1,865 KW
  • Standard Delivery            Consult Factory
  • Speed Range     12,500 to 25,000rpm-60Hz
  • Materials of Construction            316L SS, Duplex SS
  • Bearing Materials Available        Steel, Bronze, Babbitt
  • Hydrotest Pressure         9,000 psi             633 kg/cm2
  • Max Viscosity    100 cp
  • Industry Standard            API-610
  • Solids Range      0.015″ (0.381mm), 400 microns
  • Motor Details    Custom
  • Mounting Configurations             Horizontal
  • Dimensional Standards Custom
  • Number of Available Hydraulics…            Custom
  • Seal Configurations Available     Single, Double, Tandem
  • Available Inducer             Yes
  • Available Flanges             300#, 600#, 900#, 1,500#, 2,500# RF or RTJ
  • Pump Case Corrosion Allowance              0.125″ (3.175mm)
  • Suction and Discharge Size          4×4

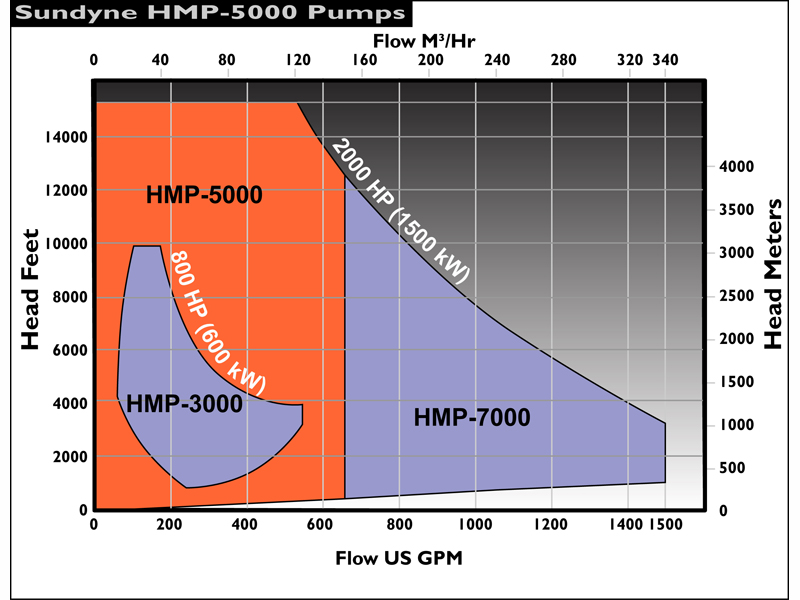

Información Técnica
  • Flujo 1 a 182 m3/hr
  • TDH 2 a 3094 m
  • Power kW
