HMP 3000

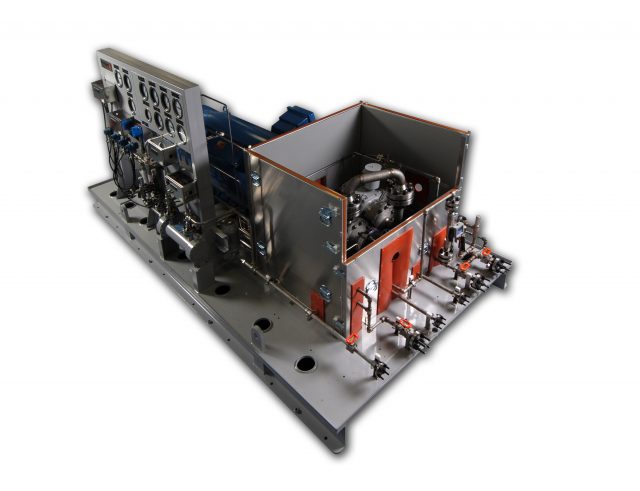

La HMP-3000 es una bomba centrífuga de dos etapas con engranajes integrados. La cabeza alta HMP-3000 es para servicios pesados en las industrias de fertilizantes, PTA, urea, HPI, CPI y especiales.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química
Descripcion General

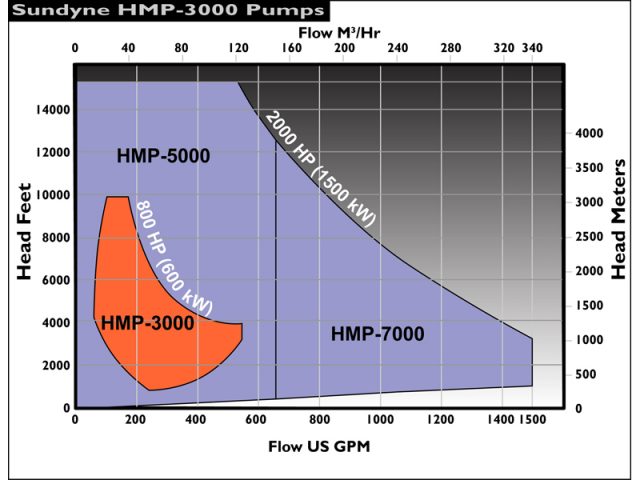

  • Heads To             1,000 to 10,000ft             213 to 2,135m   60HZ: 304 to 3,050m
  • Flows To              60 to 440gpm    8 to 320m3/hr   60HZ: 10 to 400m3/hr
  • Max Power         800         600
  • Temp Range      -200 to 500°F     -129 to 260°C
  • Number of Stages            2.0
  • Max Case Working Pressure       3,750 psi             264 kg/cm2
  • Max Suction Pressure    425psi (30kg/cm²)
  • Differential Head             10,000 ft             3,050 m
  • HP Dependent on Diff. Head       800 hp  600 KW
  • Standard Delivery            52 weeks
  • Speed Range     8,000 to 22,000rpm-60Hz
  • Materials of Construction            316L SS, Duplex SS
  • Bearing Materials Available        Steel, Bronze, Babbitt
  • Hydrotest Pressure         5,625 psi             395 kg/cm2
  • Max Viscosity    100 cp
  • Industry Standard            API-610
  • Solids Range      0.015″ (0.381mm), 400 microns
  • Mounting Configurations             Horizontal
  • Dimensional Standards Custom
  • Number of Available Hydraulics…            Custom
  • Seal Configurations Available     Single, Double, Tandem
  • Available Inducer             Yes
  • Available Flanges             300#, 600#, 900#, 1,500# RF or RTJ
  • Pump Case Corrosion Allowance              0.125″ (3.175mm)
  • Suction and Discharge Size          4×3
Información Técnica
  • Flujo 8 a 320 m3/hr
  • TDH 213 a 2135 m
  • Power kW
