FQ (VS2)

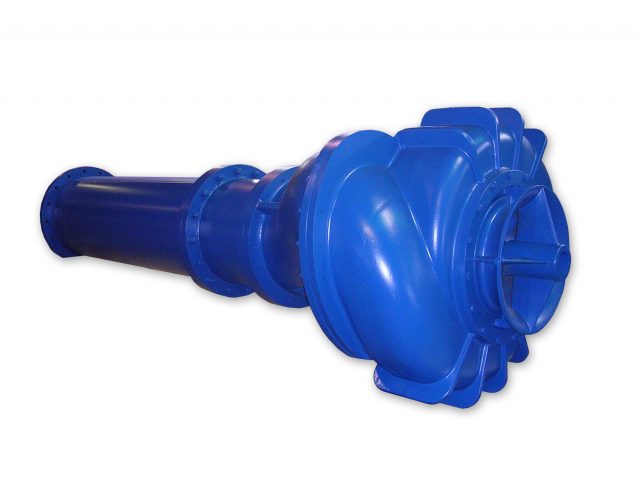

La bomba centrífuga de sumidero FQ VS2, API 610 11ª edición, de impulsor de succión doble montado verticalmente. Ideal para refinar torres de enfriamiento, toma de agua cruda, transferencia de agua, riego y desarrollo.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química, Alimentos
Descripcion General
  • Heads To             30 to 490ft          6 to 150m           60HZ: 9 to 150m
  • Flows To              30 to 39,600gpm              8 to 9m3/hr       60HZ: 10 to 10,000m3/hr
  • Max Power         2,012     1500
  • Temp Range      -22 to 482°F        -30 to 250°C
  • Number of Stages            1.0
  • Max Case Working Pressure       218 psi 15 bar
  • Max Suction Pressure    Flooded
  • Differential Head             492 ft    150 m
  • HP Dependent on Diff. Head       2,012 hp              1,500 KW
  • Speed Range     740 to 1,480rpm-60Hz
  • Materials of Construction            meets H1-API 610, 10 edition
  • Bearing Materials Available        Angular contact bearing and/or axial roller bearing
  • Hydrotest Pressure         290 psi 20 bar
  • Max Viscosity    Consult factory
  • Industry Standard            API-610 11th Edition VS2 and ISO 13709
  • Mounting Configurations             Submersible vertical
  • Number of Available Hydraulics…            4.0
  • Seal Configurations Available     API-682
  • Available Flanges             150# FF/RF
  • Pump Case Corrosion Allowance               0.118inch (3 mm)
  • Suction and Discharge Size          up to 38″/36″
  • API Plans for Sundyne Pumps    All API-682 configurations
Información Técnica
  • Flujo 8 a 9.000 m3/hr
  • TDH 6 a 150 m
  • Power 1.500 kW
