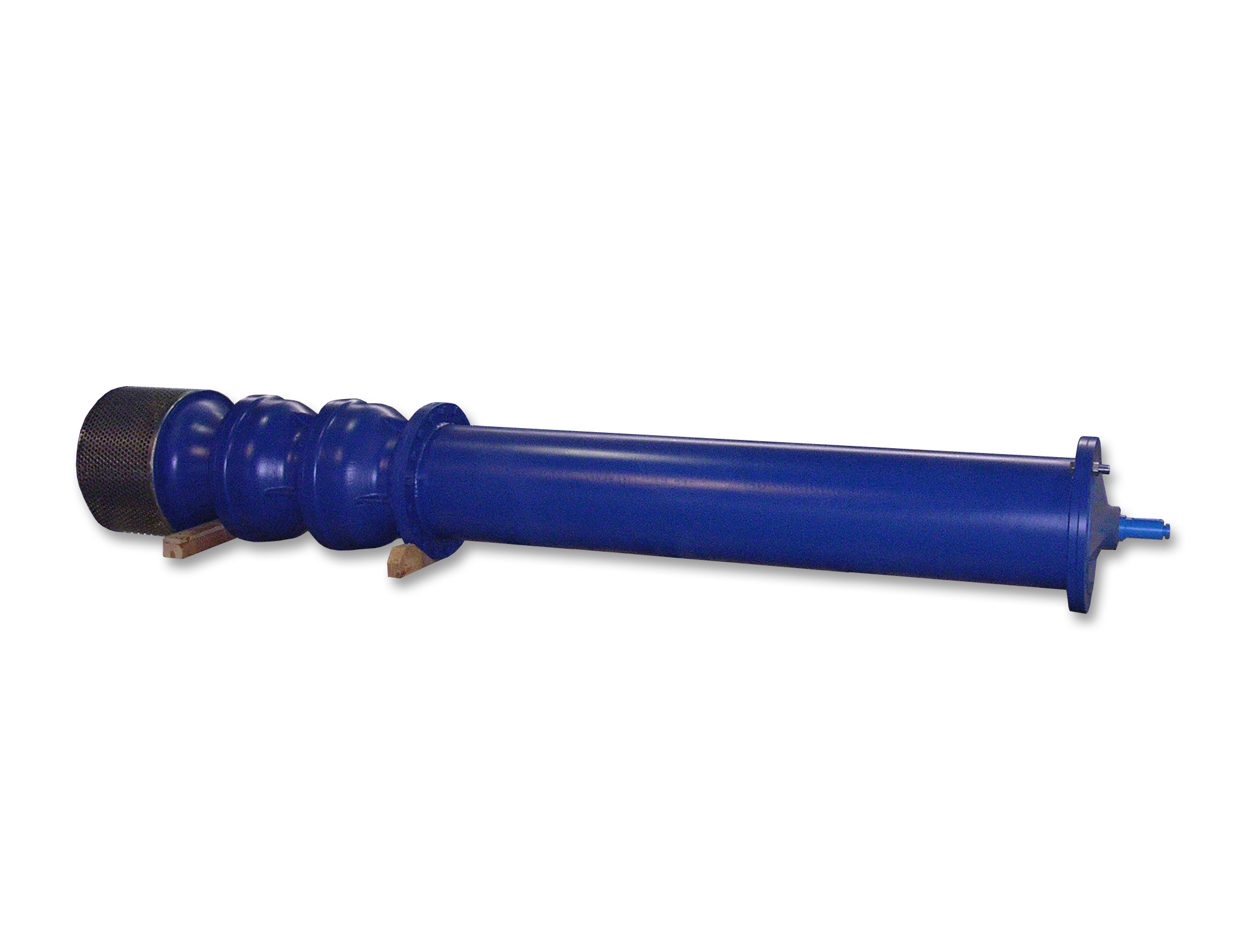

Sundyne Marelli FGB (VS1)

La FGB es una bomba sumergible multi-etapa vertical VS1 API-610 11ª edición, ISO-13709 Bomba vertical multi-etapa, caso radialmente dividido, bomba de proceso centrífugo sumergible. La longitud de la columna se calcula a la relación NPSHa / NPSHr para satisfacer las aplicaciones NPSHa más bajas. Diseño personalizado para cumplir con la presión de descarga exacta del proceso. Una bomba vertical de servicio severo.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química, Alimentos
Descripcion General

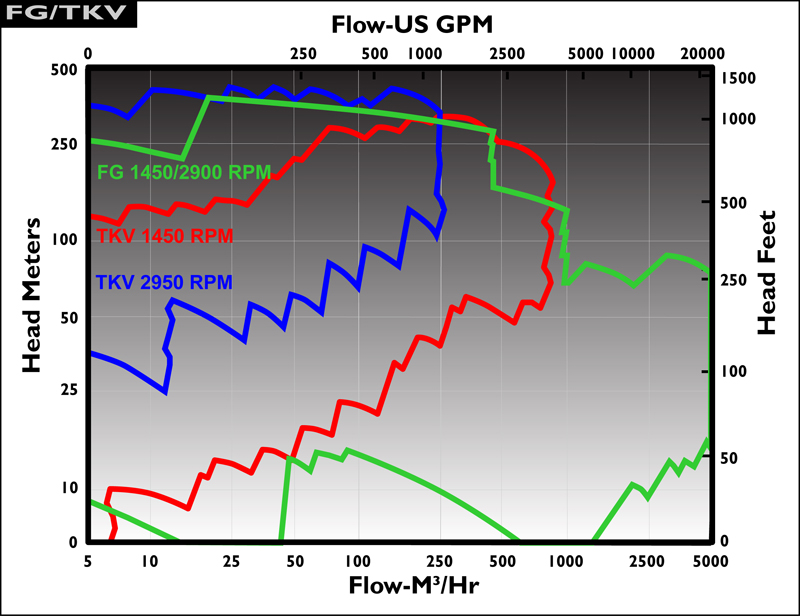

  • Heads To             30 to 1,150ft      6 to 350m           60HZ: 9 to 200m
  • Flows To              10 to 13,209gpm              1 to 3,000m3/hr               60HZ: 3 to 3,000m3/hr
  • Max Power         1,341     1000
  • Temp Range      -22 to 482°F        -30 to 250°C
  • Number of Stages            up to 20
  • Max Case Working Pressure       189 psi 13 bar
  • Max Suction Pressure    Flooded
  • Differential Head             656 ft    200 m
  • HP Dependent on Diff. Head       1,341 hp              1,000 KW
  • Speed Range     0 to 3,500rpm-60Hz
  • Materials of Construction            Compliant to H1-API-610, 10th edition
  • Bearing Materials Available        Angular contact bearing and/or axial roller bearing
  • Hydrotest Pressure         290 psi 20 bar
  • Max Viscosity    Consult factory
  • Industry Standard            API-610 11th Edition VS6 and ISO 13709
  • Mounting Configurations             Submersible vertical
  • Number of Available Hydraulics…            26.0
  • Seal Configurations Available     API-682
  • Available Flanges             150# FF/RF
  • Pump Case Corrosion Allowance               0.118inch (3 mm)
  • Suction and Discharge Size          up to 28inch (711mm)
  • API Plans for Sundyne Pumps    All API-682 configurations
Información Técnica
  • Flujo 1 a 3.000 m3/hr
  • TDH 6 a 350 m
  • Power 1.000 kW
