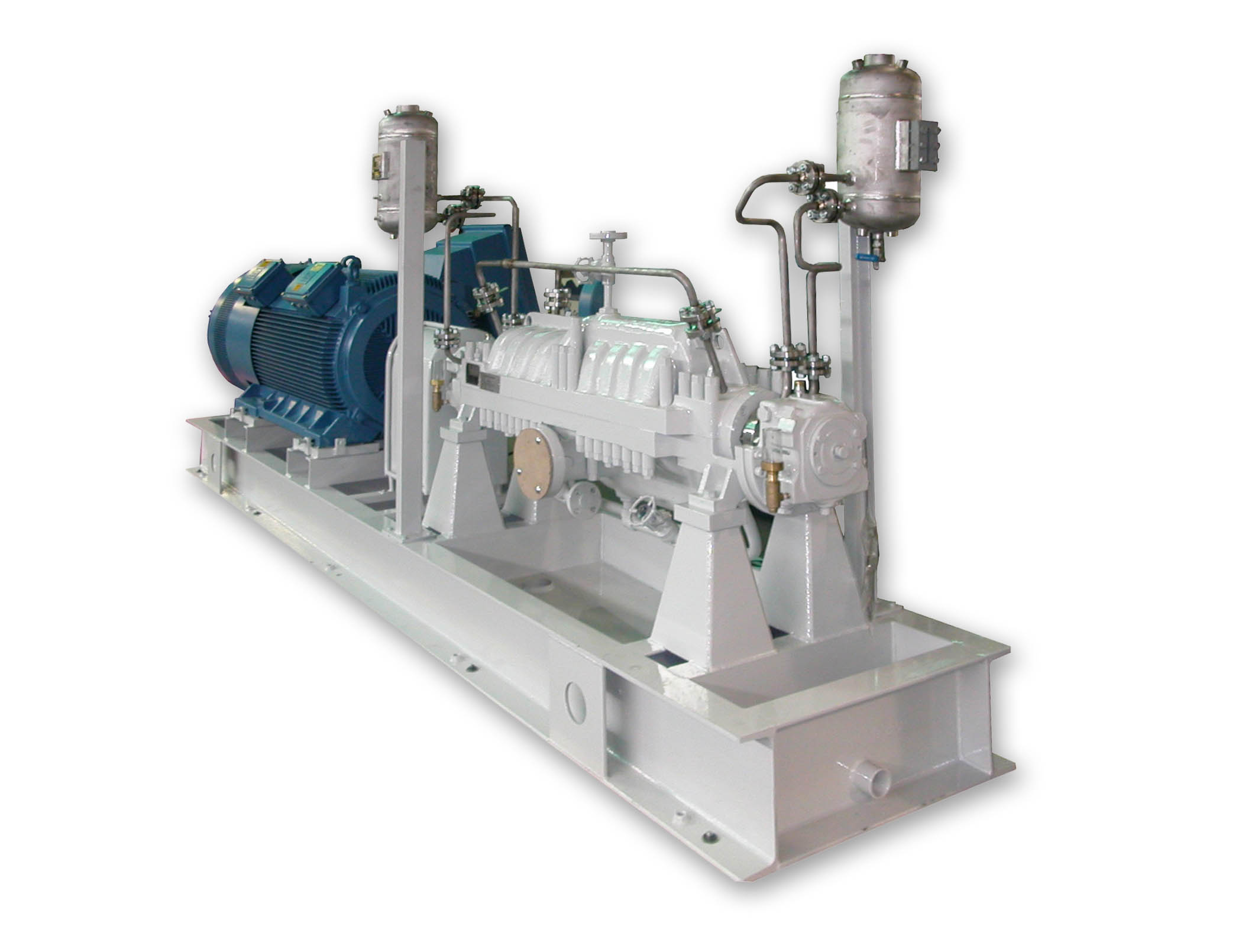

Sundyne Marelli DVMX MULTI-STAGE PUMP (BB3)

La DVMX es una bomba de proceso BB3 multi-etapa API-610 11ª Edición e ISO 13709. Disponible de 4 - 14 etapas. Hidráulica de alta eficiencia muy adecuada para aplicaciones en refinerías incluyendo plataformas, bombas de carga y coquerías. Diseño resistente del alto rendimiento para la alimentación de la caldera, oleoducto del petróleo crudo, desalinización, inyección del agua, fracking.

Soluciones: Minería, Pulpa y Papel, Gas y Petróleo, Energía, Química, Alimentos
Descripcion General

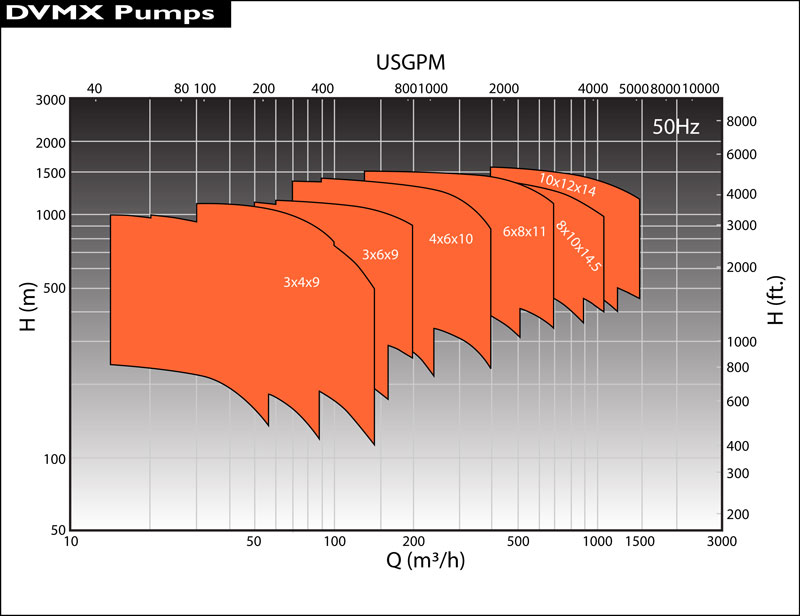

  • Heads To             500 to 4,260ft    105 to 1,300m   60HZ: 150 to 1,200m
  • Flows To              40 to 2,640gpm 8 to 600m3/hr   60HZ: 10 to 500m3/hr
  • Max Power         2,682     2000
  • Temp Range      -40 to 410°F        -40 to 210°C
  • Number of Stages            14.0
  • Max Case Working Pressure       1,740 psi             120 bar
  • Max Suction Pressure    232psi (16 bar)
  • Differential Head             3,937 ft 1,200 m
  • HP Dependent on Diff. Head       2,682 hp              2,000 KW
  • Speed Range     0 to 3,500rpm-60Hz
  • Materials of Construction            according to H1-API 610, 10th Edition
  • Bearing Materials Available        Ball bearing (Option roller bearing + angular contact bearing (option journal bearing)
  • Hydrotest Pressure         2,611 psi             180 bar
  • Max Viscosity    Consult factory
  • Industry Standard            API-610 and ISO 13709
  • Mounting Configurations             Horizontal / Side-Side
  • Number of Available Hydraulics…            6.0
  • Seal Configurations Available     API-682
  • Available Flanges             600 # / 90# FF/RF
  • Pump Case Corrosion Allowance              0.12 inch / 3 mm
  • Suction and Discharge Size           up to 8″/ 6″
  • API Plans for Sundyne Pumps    All API-682 configurations
Información Técnica
  • Flujo 8 a 600 m3/hrFlujo 8 a 600 m3/hr
  • TDH 105 a 1.300 m
  • Power 2.000 kW
