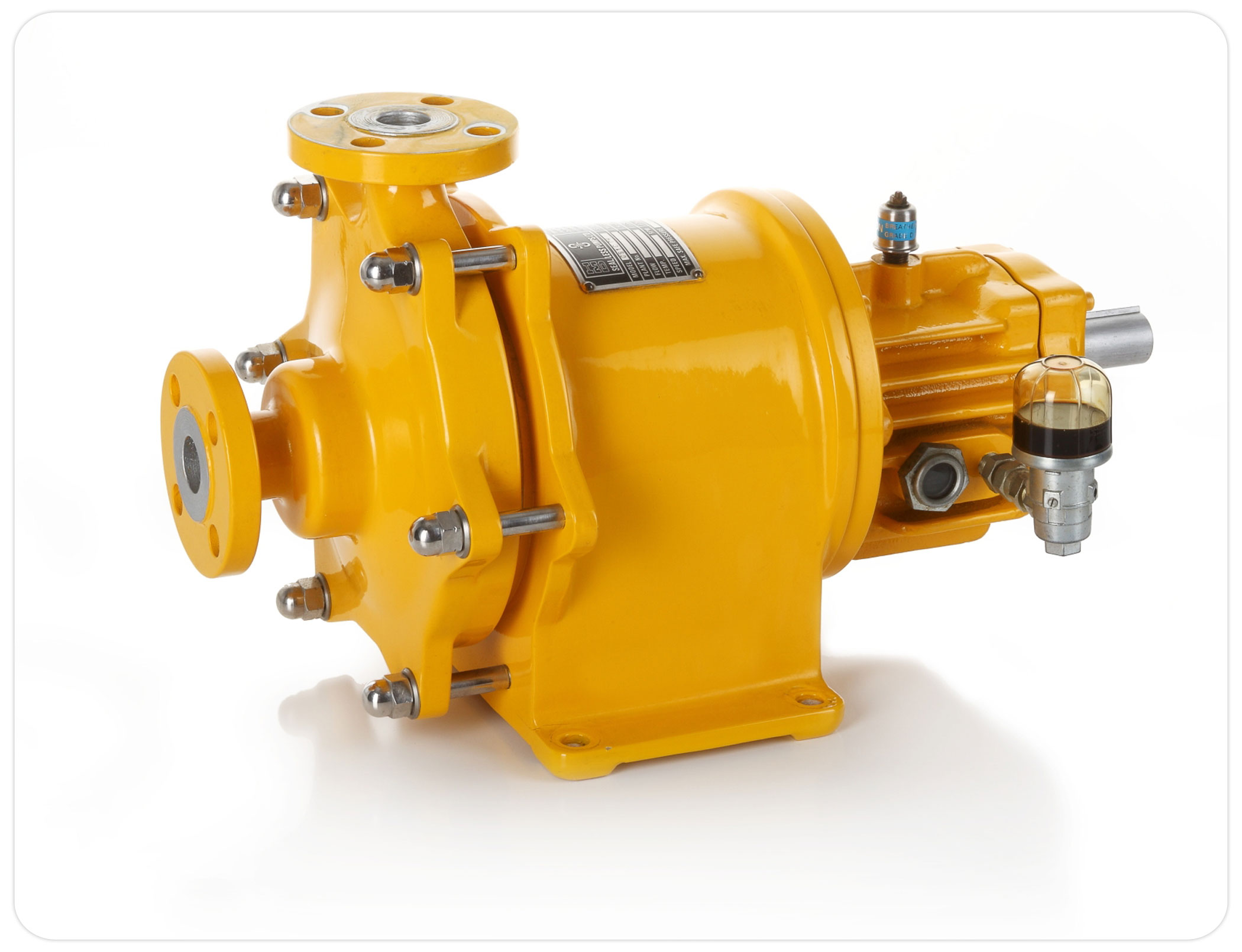

HMD Kontro CS (CHEMICAL SERVICE)
La CS es una bomba centrífuga de impulsión magnética sin sellos, especialmente adecuada para servicios químicos. Manejo de sólidos hasta 1,5% p / p (menos de 100 micras)
Descripcion General
- Heads To 0 to 490ft 0 to 150m
- Flows To 0 to 1,760gpm 0 to 400m3/hr
- Max Power 150 110
- Temp Range -112 to 850°F -80 to 450°C
- Number of Stages 1.0
- Max Case Working Pressure 275 psi 18.9 kg/cm2
- Max Suction Pressure 275psi (19kg/cm²)
- Differential Head 500 ft 150 m
- HP Dependent on Diff. Head 150 hp 110 KW
- Speed Range 1,450 to 3,500rpm-60Hz
- Materials of Construction Carbon Steel/Stainless Steel
- Bearing Materials Available carbon graphite
- Hydrotest Pressure 450 psi 31 kg/cm2
- Max Viscosity 200 cst
- Solids Range less than 1.5% w/w (less than 100 microns)
- Motor Details Standard industry motors
- Mounting Configurations Close coupled/Sep Mount
- Number of Available Hydraulics… 21.0
- Seal Configurations Available Sealless
- Available Inducer yes, custom
- Available Flanges 150# RF, 300# RF, DIN 2545 PN40
- Pump Case Corrosion Allowance 1/8″ (3.2 mm)
- Suction and Discharge Size varies by model

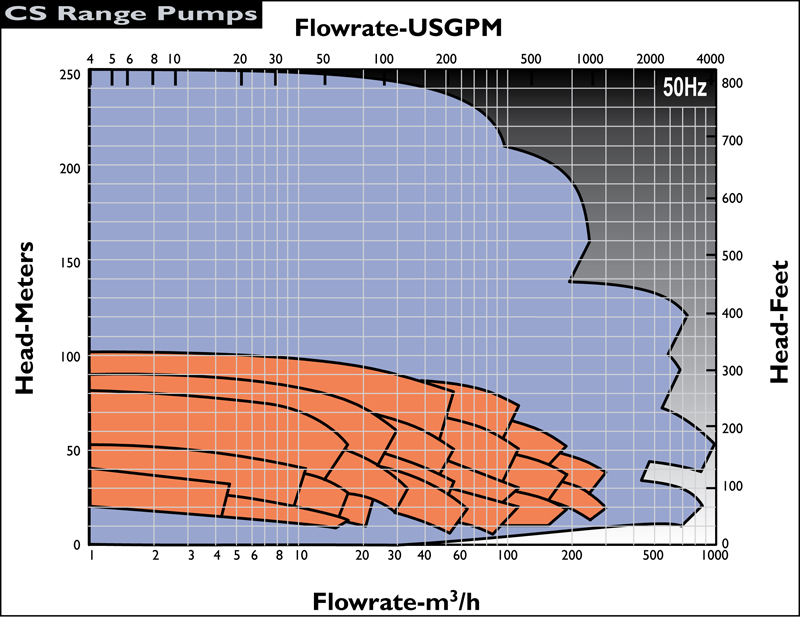

Información Técnica
- Flujo 0 a 400 m3/hr
- TDH 0 a 150 m
- Power 110 kW
