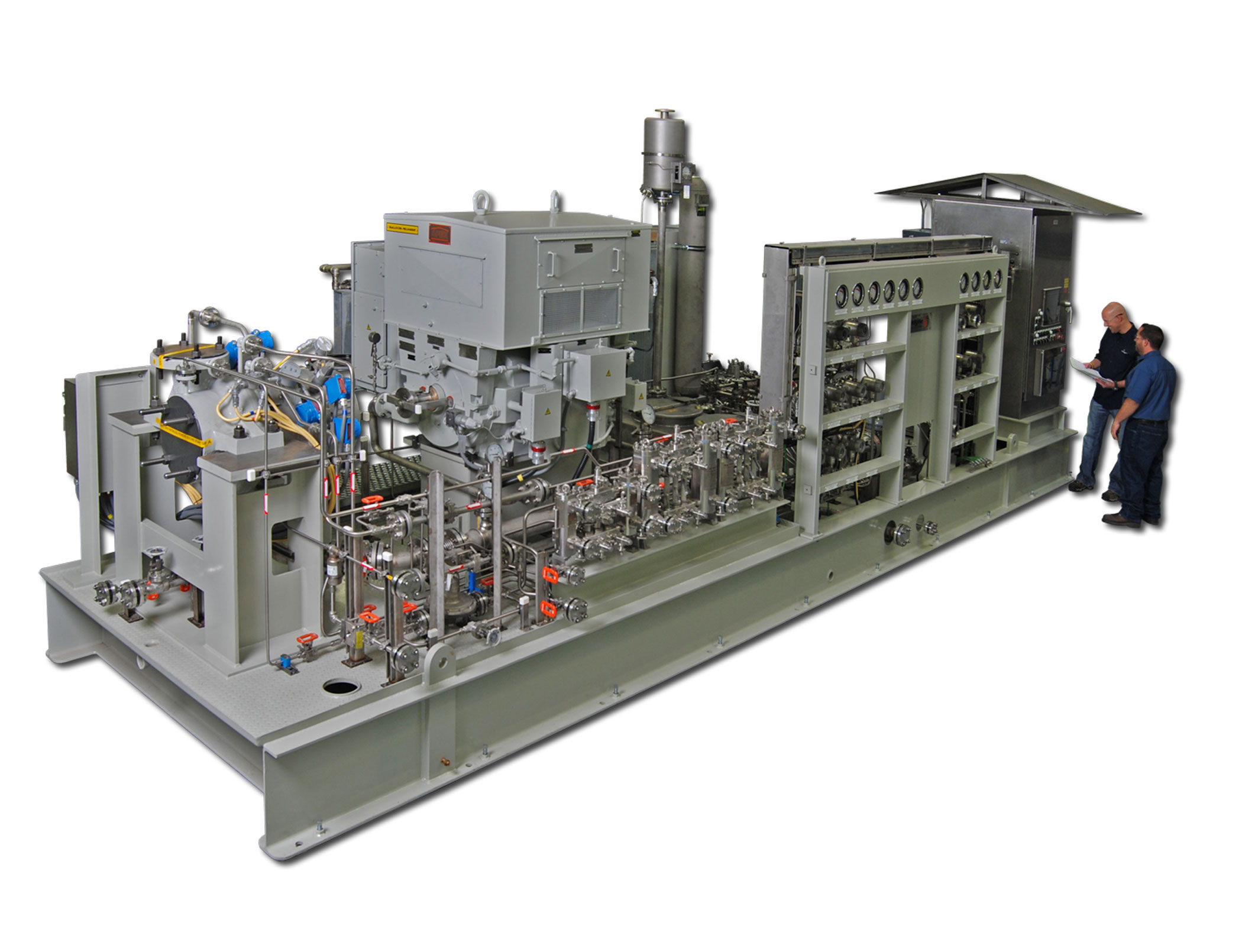

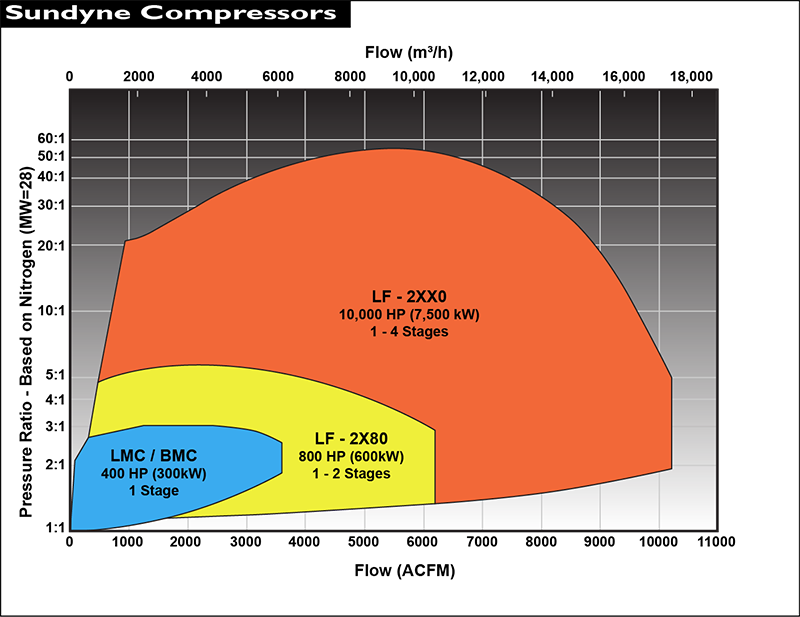

BMC-34X (TYPE A)
El LMC-34X (TYPE A) es un compresor centrífugo de una sola etapa con engranajes integrales que ofrece un rendimiento multietapa. Construido para cumplir con las exigentes normas API-617 / ISO 10439
Descripcion General
- Maximum Flow 3,550 acfm 6,030 am³/hr
- Maximum Speed 34,200 rpm-60Hz 33,600 rpm-50Hz
- Maximum Working Pressure 1,600 psi 110 bar
- Temperature Range -200 to 500°F -130 to 260°C
- Maximum Motor Size 450 hp 335 kW
- Hydro Test Pressure 1.5 Times Maximum Working Pressure
- Min Casing Thickness 0.75 in 19.05 mm
- Corrosion Allowance 0.125 in 3.18 mm
- Impeller Clearance 0.03 to 0.05in 31.8 to 38.1mm
- Shaft Diameter at Bearings 1.5in (38.1mm)
- Mechanical Seal Sizes-Outboard… 1.5 in 38.1 mm
- Mechanical Seal Sizes-Inboard 1.5 in 38.1 mm
- Mounting Horizontal
- Flanges 600# ANSI RF standard, other ratings available
- Suction Flange 3, 6, and 8 in
- Discharge Flange 2, 4, and 6 in.
- Gearbox Oil Temp Range (normal… 120 to 140°F 49 to 60°C Consult Factory
- Minimum Gearbox Starting Temp 32°f (0°C) with light turbine oil, lower with approved synthetic oil
- Gearbox Lubricant ISO VG-64 General Purpose Oil
- Gearbox Sump Capacity Per API 614
- Gearbox Lube System Pressurized
- Gears Hardened and precision ground, helical AGMA class 13
- Input and Idler Bearings Spherical roller element (input), hydrodynamic (idler and output). Min 5 year uninterrupted service.
- Output Bearings Solid Journal or Tilt Pad thrust and radial as required
- Coupling Spacer Type
- Materials of Construction Carbon Steel, Stainless Steel castings, 17-4PH, Titanium impellers
Información Técnica
- Flujo hasta 3.550 ACFM (6.030 AM³/hr)
- Max Presion de Trabajo 1.600 psia (110 bar)
- Power 335 kW
